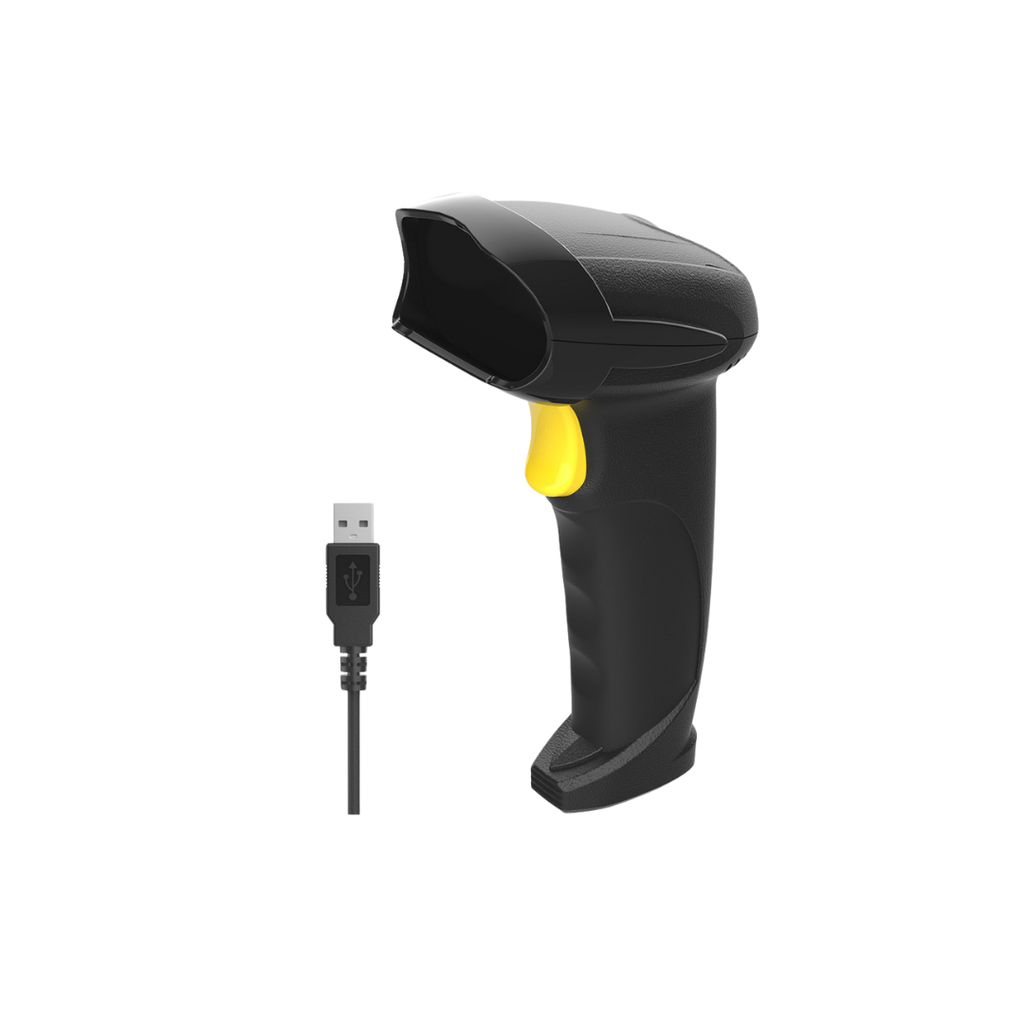

2D BARCODE SCANNER - MODEL X-760G

Here are the specifications for the 2D Barcode Scanner – Model X-760G:

Scanning Capabilities

• Reads both 1D and 2D barcodes

• Supports scanning from paper and electronic screens

Supported 1D Barcodes

• EAN-13, EAN-8, UPC-A, UPC-E

• Code 39, Code 93, Code 128, Codabar

• Interleaved 2 of 5, ITF-6, ITF-14

• ISBN, ISSN, MSI-Plessey, GS1 Databar

• Code 11, Industrial 2 of 5, Standard 2 of 5

• Plessey, Matrix 2 of 5

Supported 2D Barcodes

• QR Code, Micro QR

• Data Matrix, PDF417, Micro PDF417

• Aztec, Maxicode, Han Xin Code

Scanning Modes

• Manual trigger

• Auto-sensing

• Continuous scanning

Connectivity

• USB interface (standard)

• RS232 (optional or by request)

System Compatibility

• Windows XP/7/8/10

• Mac OS

• Linux

• Android

Performance

• CMOS image sensor (640 × 480 resolution)

• Reads barcodes as small as 4–5 mil

• Scanning speed: up to 25 cm/sec

• Scanning distance: approx. 10 mm to 600 mm (depends on barcode)

• Minimum print contrast: 25–30%

• Feedback: LED indicators and buzzer

Durability & Environment

• Housing: Durable ABS + PC material

• Protection: IP52 rating (dust and water resistance)

• Drop resistance: up to 1.2–1.5 meters

• Operating temperature: 0°C to 50°C

• Humidity tolerance: 20% to 85% RH (non-condensing)

Physical Dimensions

• Size: Approx. 180 mm × 89 mm × 66 mm

• Weight: Around 108 g (with cable)
