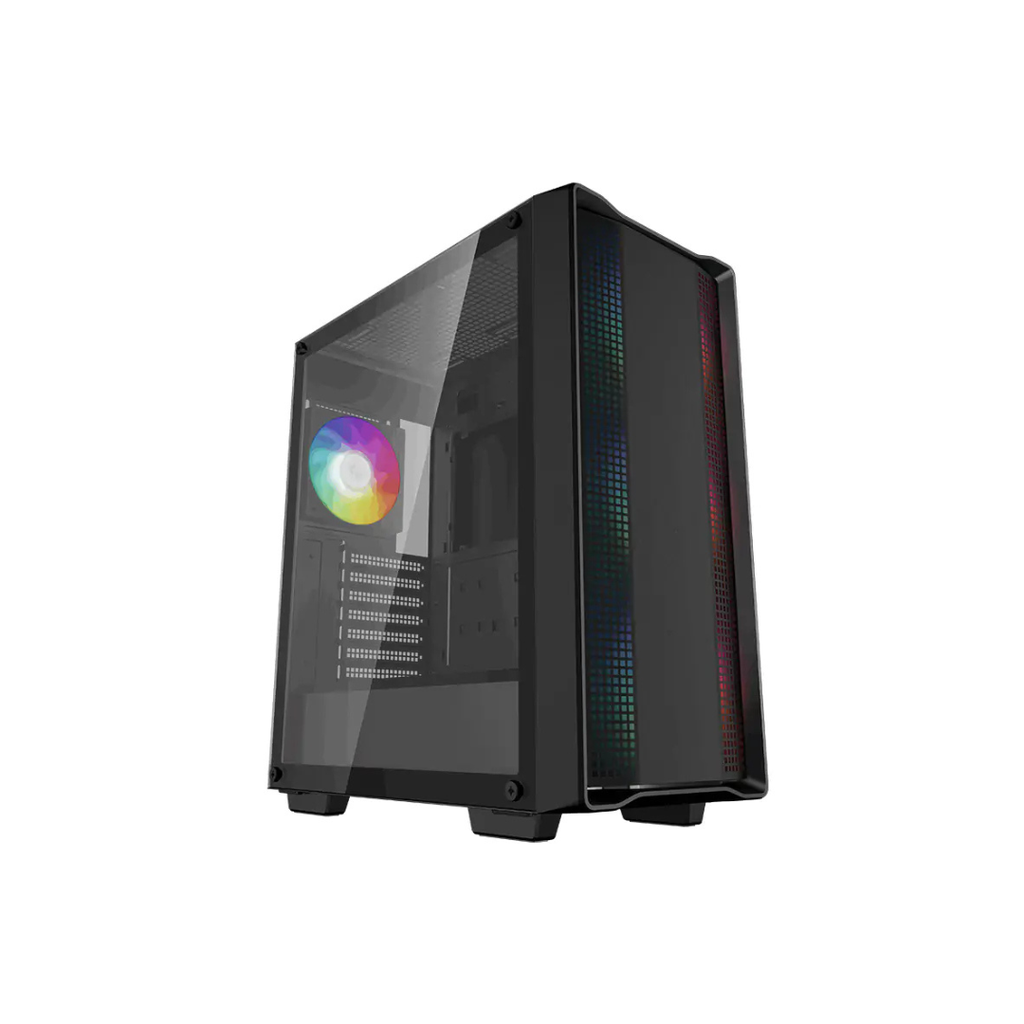

CASE -R-CC560-BKAMA4-G-2

Model: DeepCool CC560 Mesh V2

Case Type: Mid Tower

Color: Black

Materials: ABS plastic, SPCC steel, tempered glass

Dimensions: 432 × 215 × 483 mm (L × W × H)

Net Weight: 4.9 kg

Motherboard Compatibility:

• ATX

• Micro-ATX

• Mini-ITX

GPU Clearance:

• Supports graphics cards up to 370 mm in length

CPU Cooler Clearance:

• Supports CPU coolers up to 165 mm in height

PSU Compatibility:

• ATX PS2

• Max PSU length: 170 mm

Expansion Slots:

• 7

Drive Bays:

• 2 × 3.5"

• 3 × 2.5"

Cooling System:

• Pre-installed Fans:

• Front: 3 × 120 mm
• Rear: 1 × 120 mm
  • Fan Support:
• Front: Up to 3 × 120 mm or 2 × 140 mm
• Top: Up to 2 × 120 mm or 2 × 140 mm
• Rear: 1 × 120 mm

Radiator Support:

• Front: Up to 360 mm

• Top: Up to 240 mm

• Rear: 120 mm

Front I/O Ports:

• 1 × USB 3.0

• 2 × USB 2.0

• 1 × 3.5 mm Audio Combo Jack

• Power and Reset buttons

Additional Features:

• Full mesh front panel for airflow

• Tempered glass side panel

• Removable dust filters (top, front, bottom)

• Cable management space behind the motherboard tray
