CASE - R-CH780-WHADE41-G-1

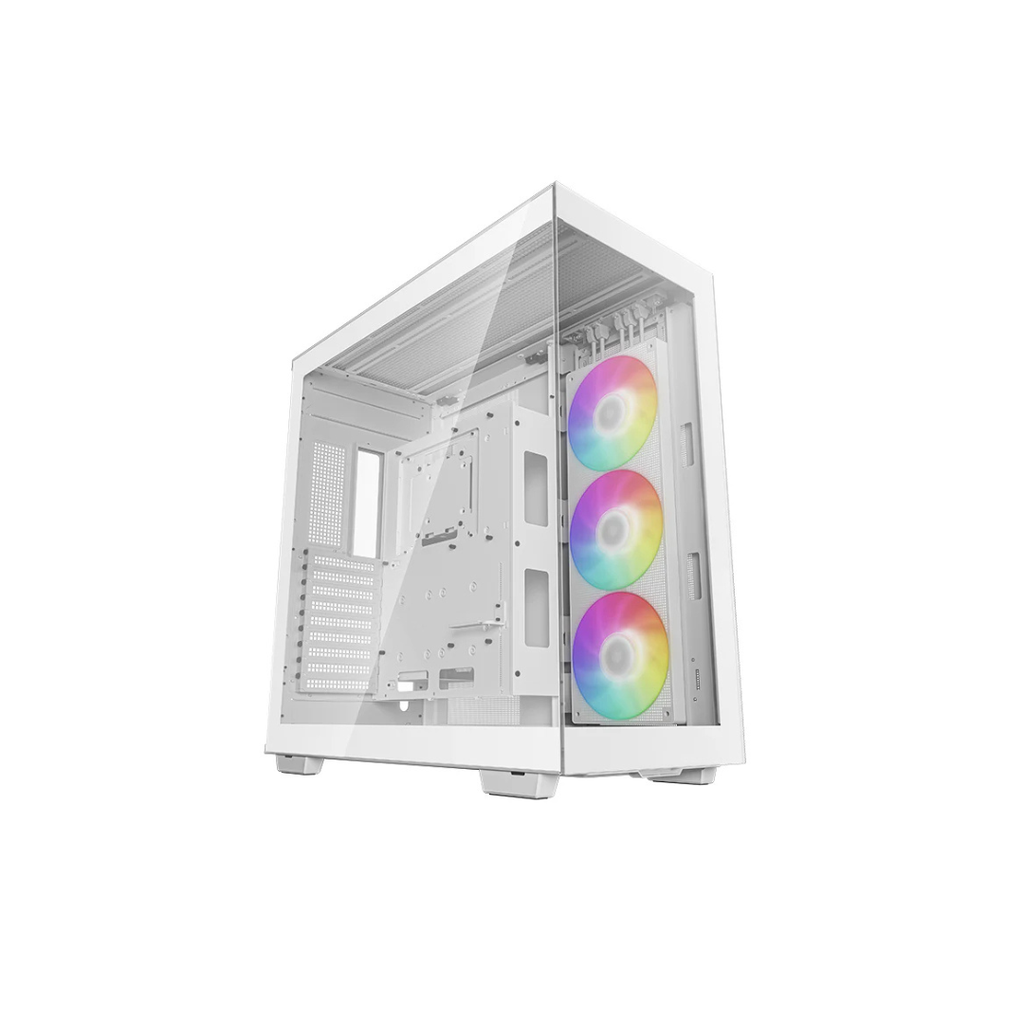

DeepCool CH780 WH – Full-Tower ATX Case

Model: R-CH780-WHADE41-G-1

Key Specifications

• Dimensions: 528 × 250 × 551 mm (L × W × H)
• Weight: 13.7 kg
• Materials: ABS, SPCC Steel, Tempered Glass
• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
• Expansion Slots: 9
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 4 × USB 3.0
  • 1 × USB Type-C
  • 1 × Audio/Mic combo jack
  • Power and Reset buttons
• Pre-Installed Fans:
  • Side: 1 × 420mm ARGB fan

Cooling Support

• Fan Support:
  • Top: 3 × 120mm or 3 × 140mm or 2 × 180mm or 2 × 200mm
  • Side: 3 × 120mm or 3 × 140mm
  • Bottom: 3 × 120mm or 3 × 140mm or 2 × 180mm or 2 × 200mm
• Radiator Support:
  • Top: 120/140/240/280/360/420mm
  • Side: 120/140/240/280/360/420mm
  • Bottom: 120/140/240/280/360/420mm

Clearance

• CPU Cooler Height Limit: 132mm
• GPU Length Limit: 480mm
• Power Supply Type: ATX PS2 (maximum length: 180mm)
• Warranty: 2 years

Notable Features

• Dual-chamber layout for cleaner builds and better cable management
• Panoramic tempered glass panels for a clear internal view
• Vertical GPU mounting with included PCIe 4.0 riser cable
• Swing-out GPU support arm to prevent sag
• 26mm cable management space behind motherboard tray
• Magnetic top mesh dust filter for easy cleaning
• ARGB lighting with pre-installed 420mm ARGB fan
• Convenient front I/O ports with multiple USB and audio options
