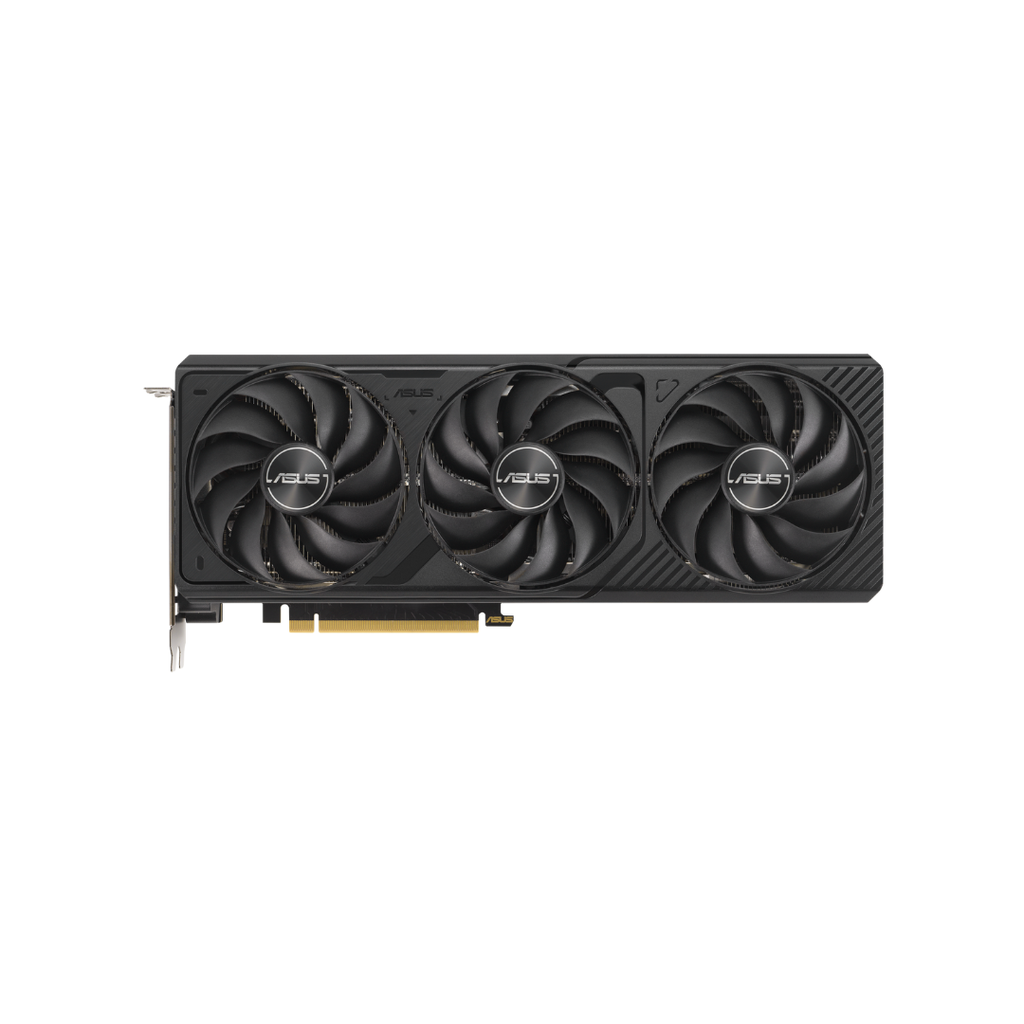

Graphics Card: ASUS GeForce RTX 4070 Ti SUPER Prime-RTX4070TIS-O16G
General Overview:
- Series: NVIDIA GeForce RTX 40 Series (powered by Ada Lovelace architecture).
- Model: ASUS Prime-RTX4070TIS-O16G.
- Cooling System: Triple Fan Design.
Specifications
GPU:
- Core Clock:
- Base Clock: ~2310 MHz (varies with factory overclock settings).
- Boost Clock: ~2610 MHz (OC mode).
- CUDA Cores: 7680.
- Architecture: Ada Lovelace (4th Gen Tensor Cores & 3rd Gen RT Cores).
Memory:
- Type: GDDR6X.
- Capacity: 16 GB.
- Memory Bus: 192-bit.
- Memory Speed: ~21 Gbps.
- Bandwidth: ~504 GB/s.
Performance:
- Ray Tracing (RT) Performance: Supports real-time ray tracing for highly realistic visuals.
- AI Features: DLSS 3.0 for improved gaming frame rates and power efficiency.
- Power Draw: Approximately 285W (recommended PSU: 750W).
Cooling:
- Fan Configuration:
- Triple Axial-tech fans.
- Optimized airflow for quiet and efficient cooling.
- Heatsink: Advanced heatsink design with MaxContact technology for improved heat dissipation.
Connectivity:
- Display Outputs:
- 3 x DisplayPort 1.4a (up to 8K @ 60Hz).
- 1 x HDMI 2.1a (up to 8K @ 60Hz or 4K @ 120Hz).
- Multi-Monitor Support: Up to 4 displays simultaneously.
Dimensions:
- Size: ~3-slot design.
- Length: ~300 mm.
- Height: ~135 mm.
- Width: ~58 mm.
Power Supply Requirements:
- Power Connector: 1 x 16-pin PCIe Gen 5 connector or 2 x 8-pin adapters (depending on model packaging).
- PSU Recommendation: 750W or higher.
Features:
- RGB Lighting: Aura Sync-enabled customizable RGB accents.
- Build Quality: Reinforced frame to prevent PCB sagging.
- Dual BIOS: Quiet and Performance modes for customizable cooling profiles.
Technology:
- NVIDIA Technologies:
- DLSS 3.0.
- NVIDIA Reflex.
- NVIDIA Studio for creators.
- Gaming Features:
- DirectX 12 Ultimate support.
- Vulkan API compatibility.
Brand | ASUS |
