SWITCH MERCUSYS MS105G 5-PORT 10/100/1000 MPS

Mercusys MS105G – Specifications

Type

• Unmanaged Gigabit Ethernet Switch
• Desktop form factor

Ports

• 5 × 10/100/1000 Mbps RJ45 ports
• Auto-Negotiation and Auto-MDI/MDIX support

Performance

• Switching capacity: 10 Gbps
• Data rates:
  • 10/100/1000 Mbps (half duplex)
  • 20/200/2000 Mbps (full duplex)
• Buffer memory: 512 Kbit
• Jumbo frame support: 9 KB
• Transfer method: Store and Forward

Design

• Fanless operation for silent performance
• Compact dimensions: 105 × 70 × 24.9 mm
• Plastic casing

Power Supply

• External adapter: 5V / 0.6A
• Maximum power consumption: 3W

LED Indicators

• Power
• Ethernet activity (Ports 1–5)

Standards & Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• CSMA/CD

Certifications

• CE, RoHS

Operating Environment

• Temperature: 0°C to 40°C
• Humidity: 10% to 90% (non-condensing)

Package Contents

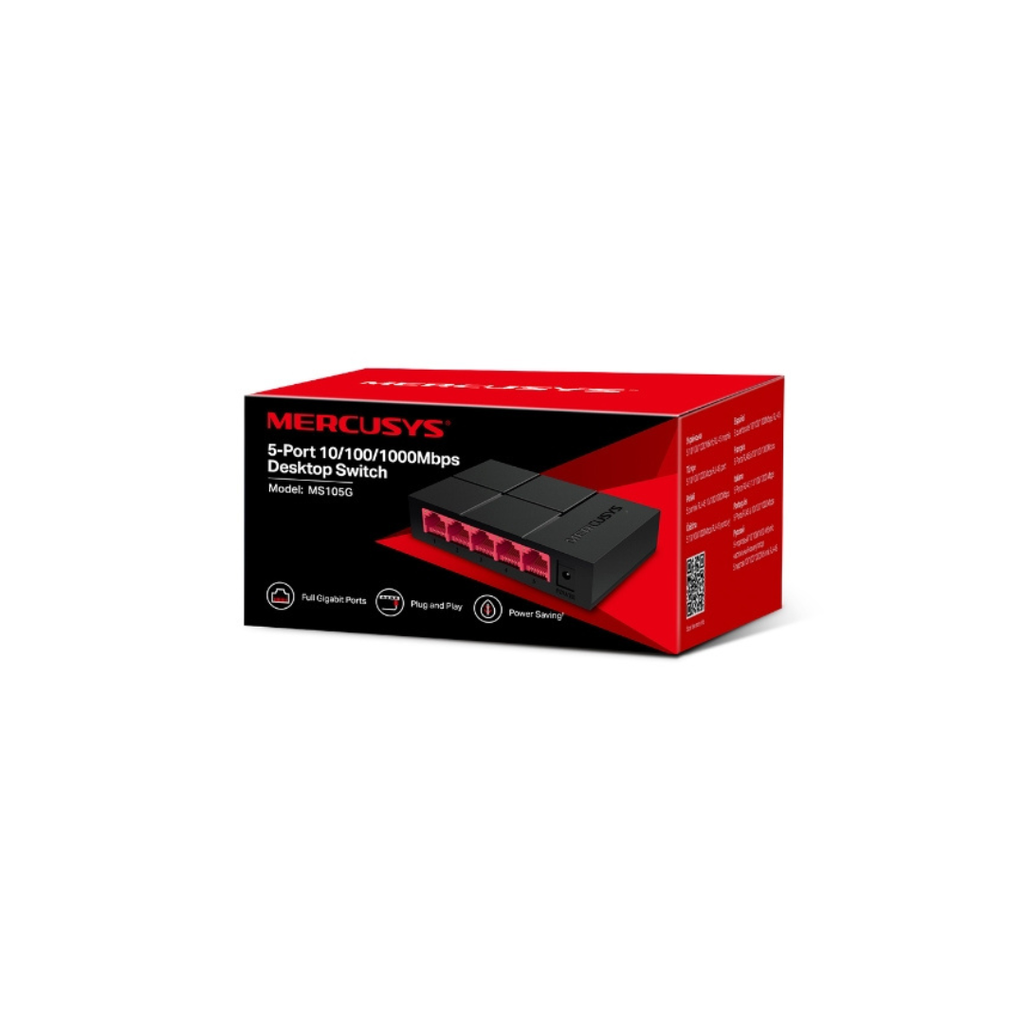

• MS105G 5-Port Desktop Switch
• Power adapter
• Quick Installation Guide
