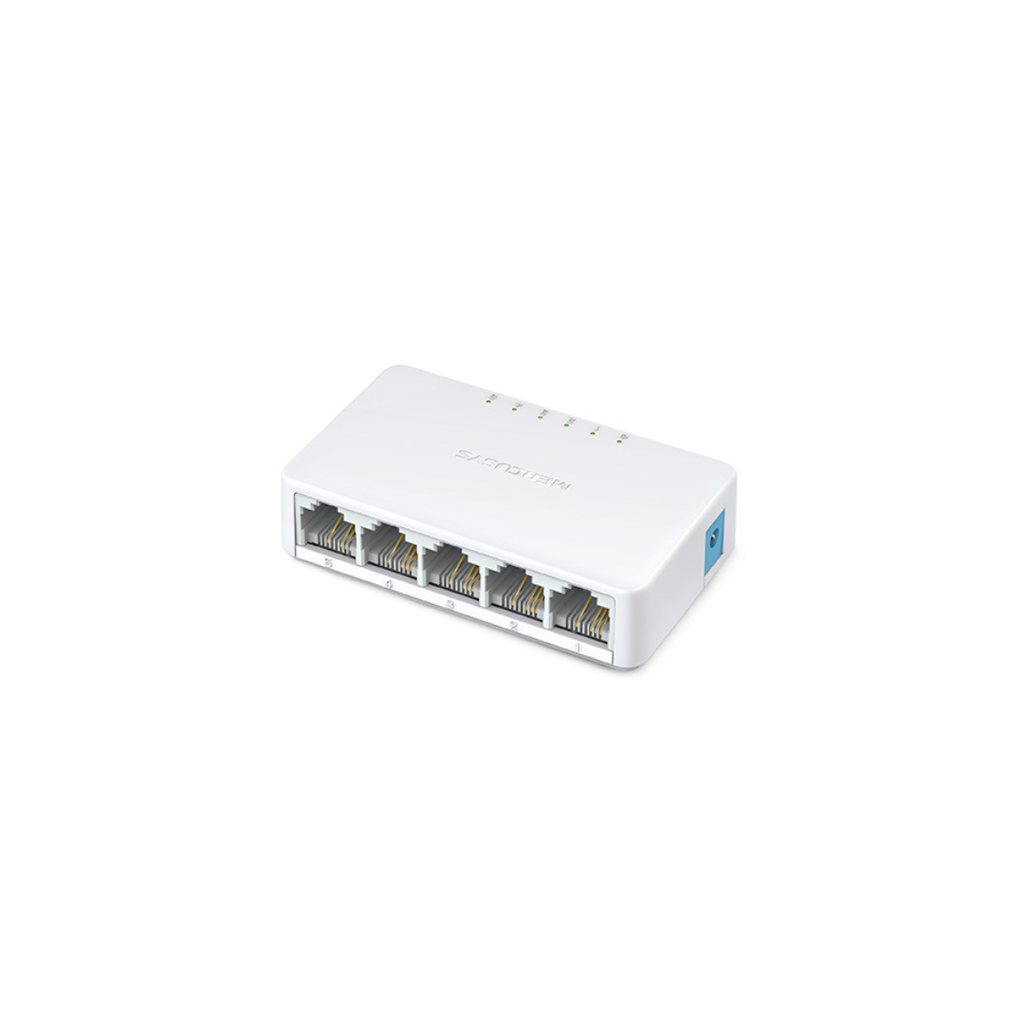

SWITCH MERCUSYS 5 PORTA - MODEL MS105

Mercusys MS105 – Specifications

Type

• Unmanaged Fast Ethernet Switch
• Desktop form factor

Ports

• 5 × 10/100 Mbps RJ45 ports
• Auto-negotiation and Auto-MDI/MDIX support

Performance

• Switching capacity: 1 Gbps
• Data rates:
  • 10/100 Mbps (half duplex)
  • 20/200 Mbps (full duplex)
• Buffer memory: 768 Kb
• Jumbo frame support: 2 KB
• Transfer method: Store and forward

Design

• Fanless operation for silent performance
• Compact dimensions: 82 × 49 × 21 mm
• Plastic casing

Power Supply

• External adapter: 5V / 0.6A

LED Indicators

• Power
• Ethernet activity (Ports 1–5)

Standards & Protocols

• IEEE 802.3, 802.3u, 802.3x
• CSMA/CD

Certifications

• CE, RoHS

Operating Environment

• Temperature: 0°C to 40°C
• Humidity: 10% to 90% (non-condensing)

Package Contents

• MS105 5-Port Desktop Switch
• Power adapter
• Quick Installation Guide
