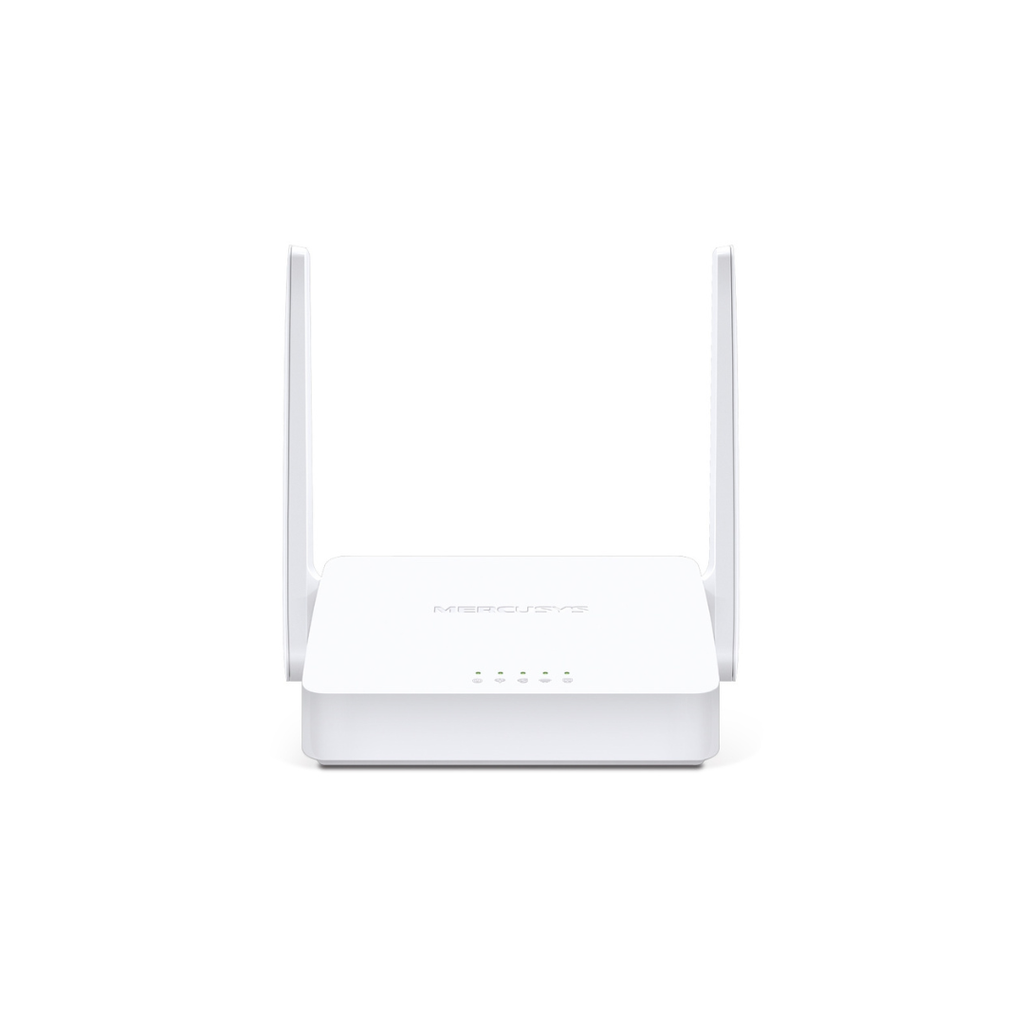

ROUTER MERCUSYS MW300D 300MBS WI FI

Here’s a clean overview of the Mercusys MW300D 300Mbps Wireless N ADSL2+ Modem Router

Mercusys MW300D – Specifications

Type

• ADSL2+ Modem Router
• Combines modem, wireless router, and 3-port switch

Wireless Speed

• Up to 300 Mbps on 2.4 GHz band
• Ideal for browsing, HD streaming, and online gaming

Antennas

• 2 × 3dBi fixed external antennas
• Enhanced wireless coverage and signal stability

Wireless Standards

• IEEE 802.11b/g/n

Frequency

• 2.4 – 2.4835 GHz

Transmission Power

• Less than 20dBm (EIRP)

Reception Sensitivity

• 270M: -73dBm
• 130M: -75dBm
• 54M: -77dBm
• 11M: -90dBm
• 6M: -94dBm
• 1M: -96dBm

Security

• WPA / WPA2 encryption
• WPS button for secure one-touch setup
• Guest network support

Ports

• 1 × RJ11 port (for ADSL line)
• 3 × 10/100 Mbps LAN ports

Button

• WPS/Reset button

Power Supply

• 9V / 0.6A external adapter

Dimensions

• 114 x 94 x 26 mm

Package Contents

• MW300D Modem Router
• Power Adapter
• Quick Installation Guide
• 2 × RJ11 Phone Cables
• 1 × RJ45 Ethernet Cable
• 1 × DSL Splitter
