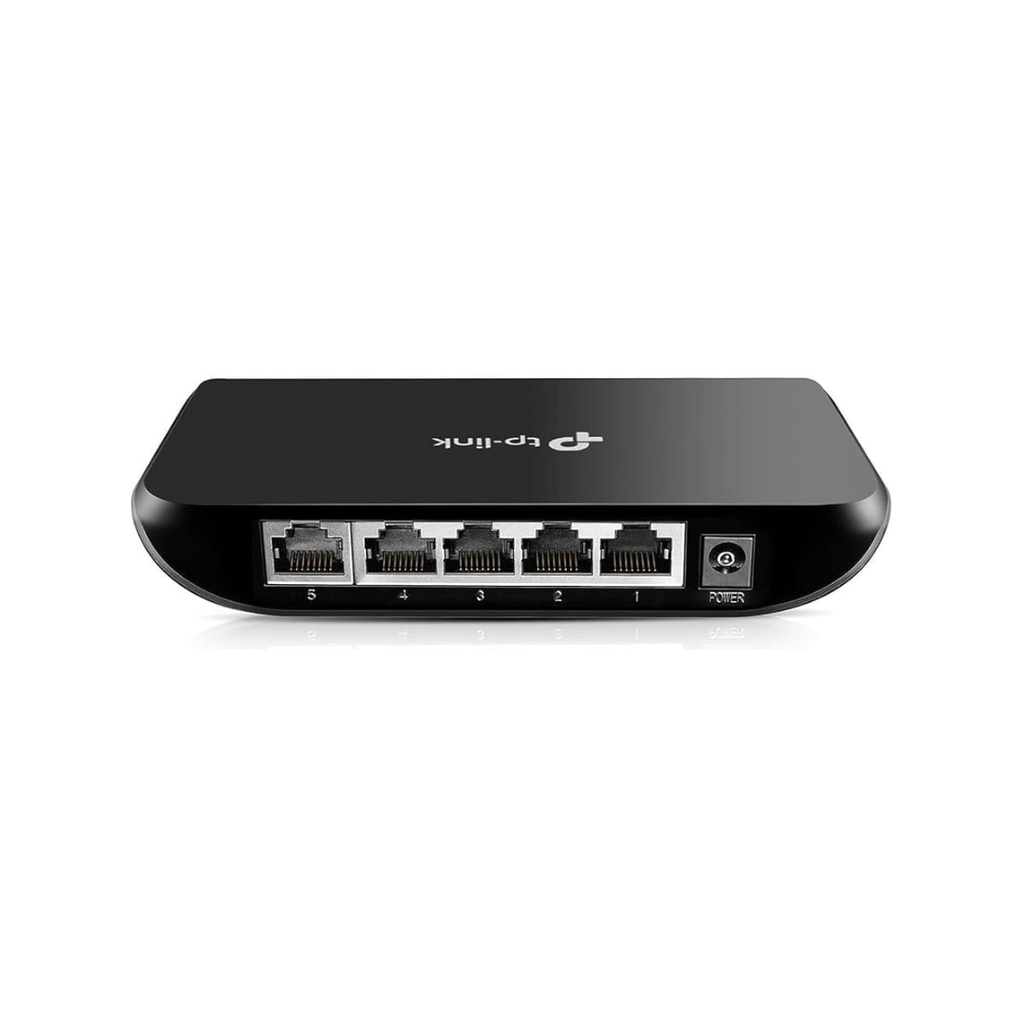

TP-LINK 5-PORT SWITCH GIGABIT - MODEL TL-SG1005D

TP-Link TL-SG1005D – Specifications

Type

• Unmanaged Gigabit Ethernet Switch
• Desktop or wall-mountable design

Ports

• 5 × 10/100/1000 Mbps RJ45 ports
• Auto-Negotiation and Auto-MDI/MDIX support

Performance

• Switching capacity: 10 Gbps
• MAC address table: 8K entries
• Packet buffer memory: 1.5 Mb
• Jumbo frame support: 15 KB
• Transfer method: Store and Forward

Design

• Fanless operation for silent performance
• Plastic casing
• Dimensions: 140 × 88 × 23 mm

Power Supply

• External adapter: 9V / 0.6A
• Maximum power consumption: 3.1 W

LED Indicators

• Power
• Ethernet activity for each port

Advanced Features

• Green Ethernet technology for energy efficiency
• IEEE 802.3x Flow Control
• Plug and play, no configuration required

Certifications

• CE, FCC, RoHS

Operating Environment

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)

Package Contents

• TL-SG1005D 5-Port Desktop Switch
• Power adapter
• Quick Installation Guide
