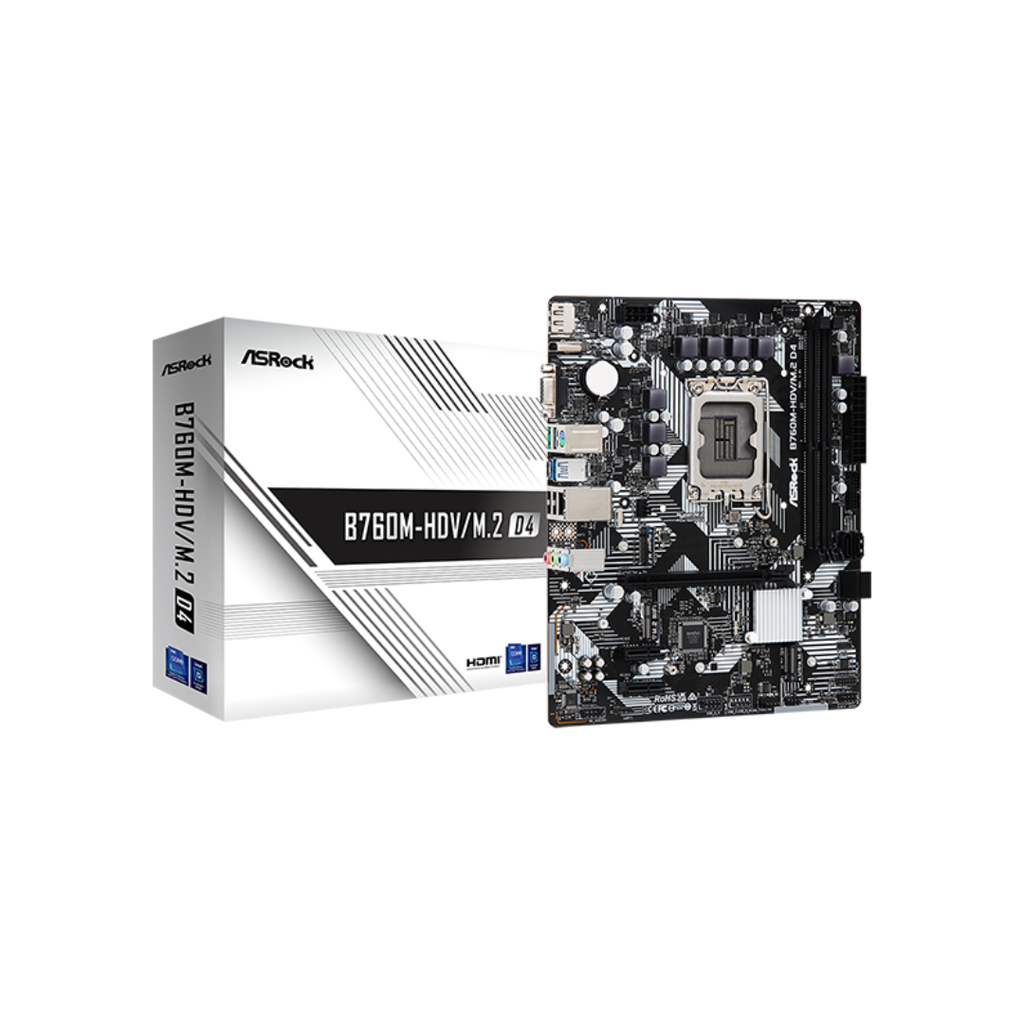

MOTHERBOARD RAPTOR LAKE Intel Socket 1700 M-ATX DDR5/ DDR4 - B760M-HDV/M.2 D4

B760M-HDV/M.2 D4

• ‧Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 5+1+1 Power Phase
• 2 x DDR4 DIMMs
  Supports Dual Channel, up to 5333+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  1 Ultra M.2 (PCIe Gen3x4 & SATA)
• 1 USB 3.2 Gen1 Type-C (Rear),
  5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  5 USB 2.0 (2 Rear, 3 Front)
• Realtek 1G LAN
• Supports ASRock Auto Driver Installer

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

• Overview
• Specification
• Support
• Where to Buy

5+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.*Wi-Fi module is not included.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!
