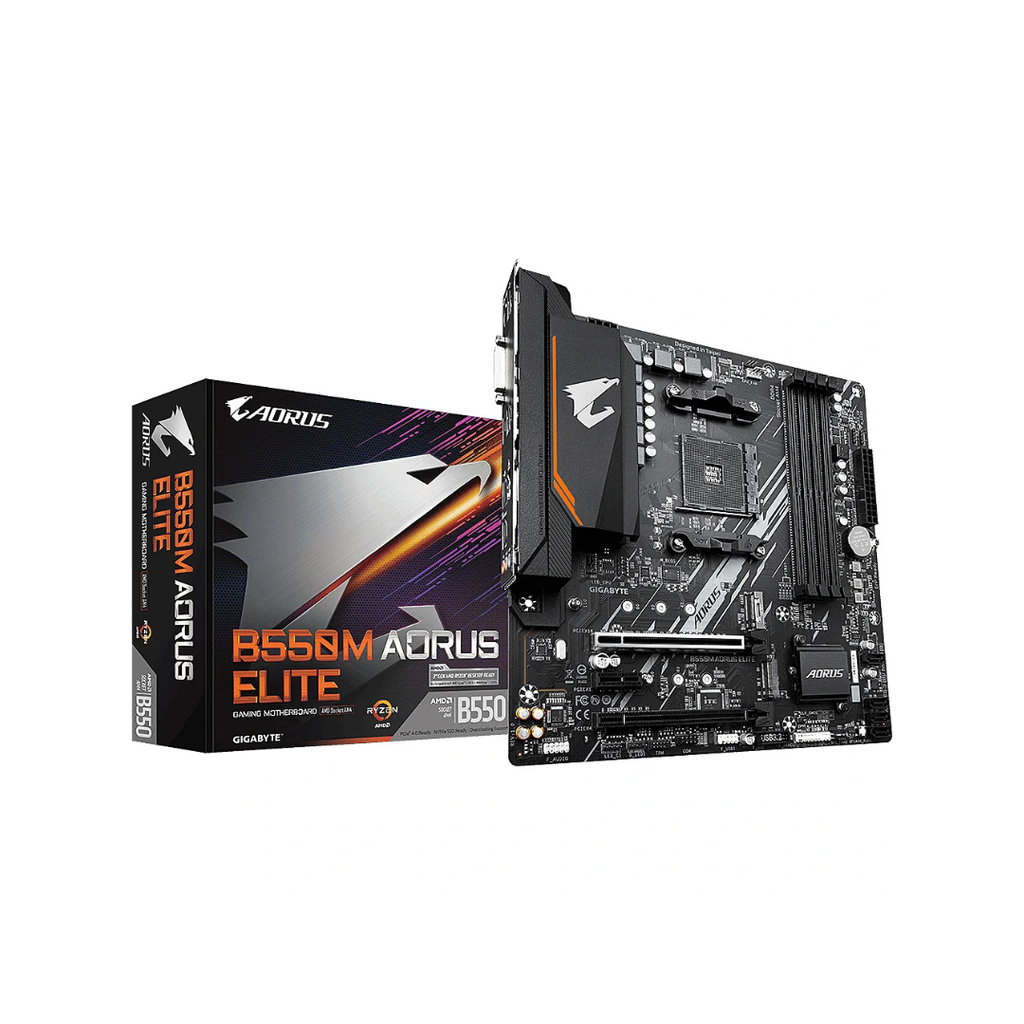

AORUS MOTHERBOARD MB AMD B550 SAM4 MATX B550M ELITE 1.3 GIGABYTE

🧩 Core Specifications

• Form Factor: Micro-ATX (mATX)
• Socket: AMD AM4
• Chipset: AMD B550
• CPU Support: Compatible with AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series processors​

🧠 Memory

• Memory Slots: 4 x DDR4 DIMM slots
• Maximum Capacity: Up to 128 GB
• Supported Speeds: DDR4 2133 MHz to 4733 MHz (OC)
• Dual Channel Support: Yes​

⚙️ Expansion Slots

• PCIe x16 Slots: 1 x PCIe 4.0 x16 slot (CPU dependent)
• PCIe x1 Slots: 1 x PCIe 3.0 x1 slot​

💾 Storage Options

• M.2 Slots:
  • 1 x M.2 PCIe 4.0 x4 / SATA slot
  • 1 x M.2 PCIe 3.0 x4 / SATA slot
• SATA Ports: 4 x SATA 6Gb/s connectors​

🎮 Graphics Support

• Integrated Graphics: Dependent on CPU
• Display Outputs:
  • 1 x HDMI port
  • 1 x DVI-D port​

🔊 Audio

• Audio Codec: Realtek ALC1200
• Channels: 7.1-Channel High Definition Audio​

🌐 Networking

• LAN: Realtek GbE LAN chip (1 Gbps)
• Wi-Fi: Not included (Wi-Fi modules can be added via PCIe)​

🔌 Rear I/O Ports

• USB Ports:
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
• Video Outputs:
  • 1 x HDMI port
  • 1 x DVI-D port
• Audio Jacks: 3 x audio jacks
• LAN Port: 1 x RJ-45 port​

🔋 Power & Cooling

• Power Phases: 5+3 phase digital VRM solution
• Cooling: Advanced thermal design with enlarged heatsinks​

🛠️ Additional Features

• BIOS: UEFI DualBIOS™
• RGB Support: RGB FUSION 2.0 with addressable LED headers
• Q-Flash Plus: Allows BIOS updates without installing CPU, memory, or graphics card​
