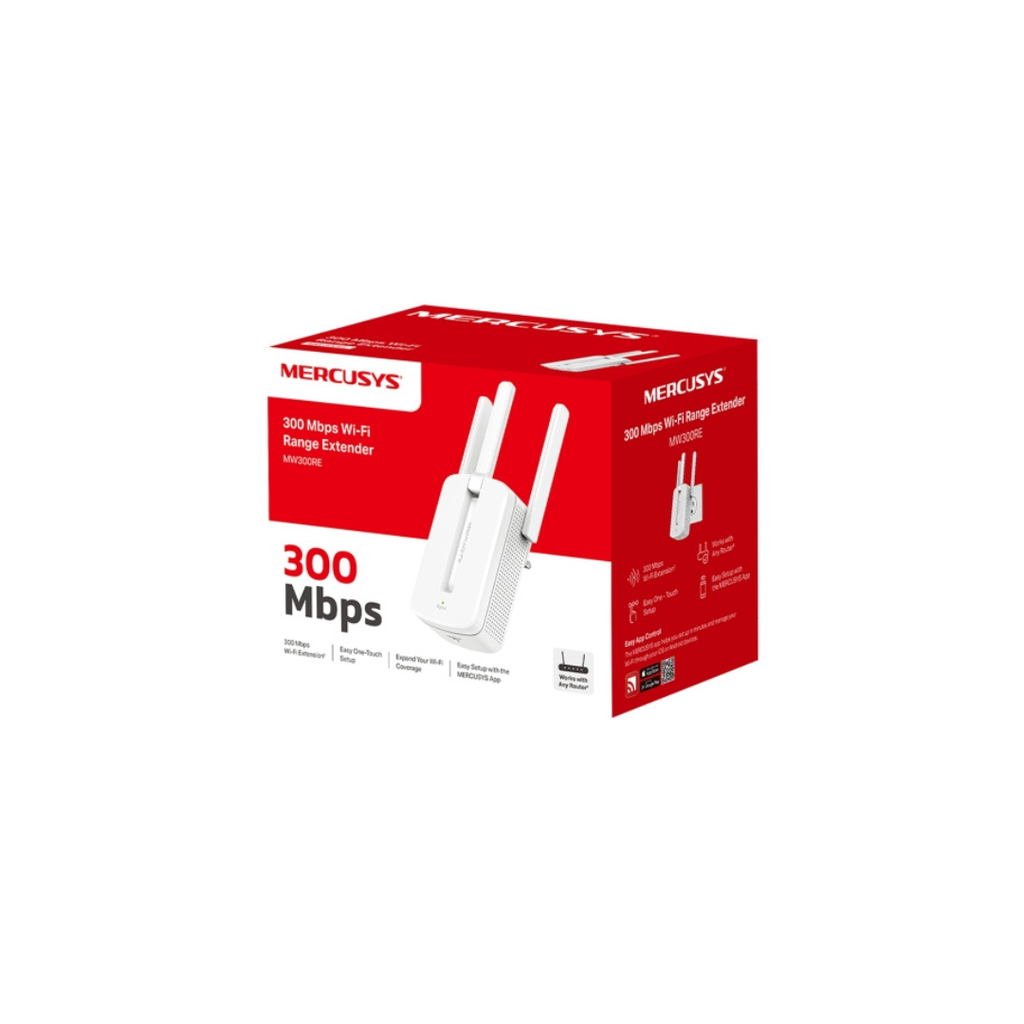

WI-FI RANGE EXTENDER MW300RE

Mercusys MW300RE – Specifications

Wireless

• Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4 – 2.5 GHz
• Speed: Up to 300 Mbps
• Reception Sensitivity:
  • 11g 54M: -79 dBm
  • HT20 MCS7: -76 dBm
  • HT40 MCS7: -72 dBm
• Transmission Power: <20 dBm
• Security: WPA-PSK / WPA2-PSK

Hardware

• Antennas: 3 external antennas
• Buttons: WPS / Reset
• Dimensions: 101 × 74.8 × 75.8 mm
• Power Consumption: Approx. 3.0 W

Features

• Boosts wireless signal to unreachable or hard-to-wire areas
• Easy setup with WPS button
• LED signal indicator for best placement
• Wall-mounted design for flexible positioning

Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)

Package Contents

• MW300RE Wi-Fi Range Extender
• Quick Installation Guide
