CASE - R-CG530-WHADA4-G-1

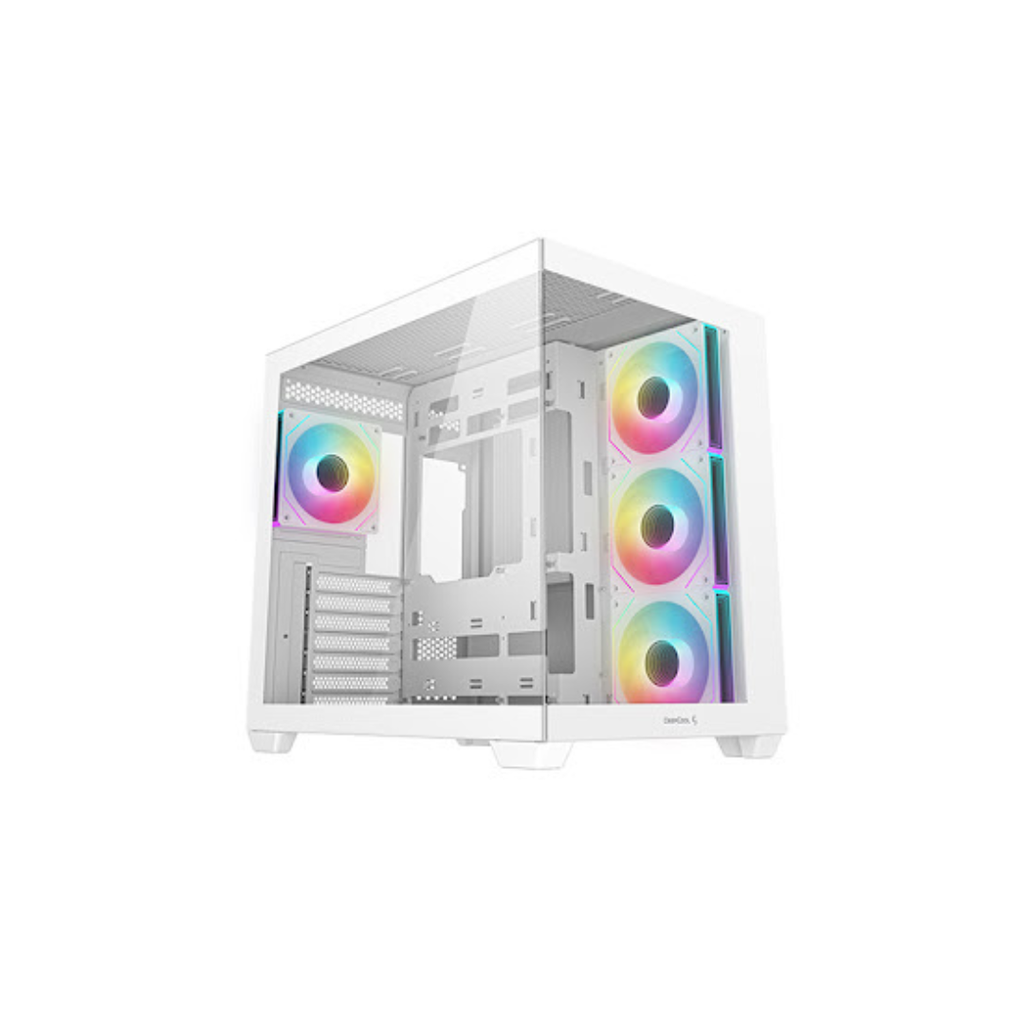

DeepCool CG530 4F WH – Mid-Tower ATX Case

Model: R-CG530-WHADA4-G-1

🧰 Key Specifications

• Dimensions: 440 × 285 × 399 mm (L × W × H)
• Weight: 7.0 kg
• Materials: ABS, SPCC Steel, Tempered Glass
• Motherboard Support: ITX, Micro-ATX, ATX (including rear connector variants)
• Expansion Slots: 7
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 2 × USB 3.0
  • 1 × USB Type-C
  • 1 × Audio/Mic combo jack
  • Power and Reset buttons

🌬️ Cooling Support

• Top:
  • 3 × 120mm or 2 × 140mm fans
  • Supports up to 360mm radiators
• Side:
  • 3 × 120mm fans
  • Supports up to 280mm radiators
• Bottom:
  • 3 × 120mm fans
  • Supports up to 360mm radiators
• Rear:
  • 1 × 120mm fan
  • Supports up to 120mm radiator

📏 Clearance

• GPU Length: Up to 410mm
• CPU Cooler Height: Up to 160mm
• PSU Length: Up to 210mm

🔧 Other Features

• Pre-Installed Fans:
  • 3 × 120mm ARGB reverse blade fans (side)
  • 1 × 120mm ARGB fan (rear)
• Dust Filters: Magnetic filters on top and bottom
• Chamber Layout: Dual-chamber for airflow and cable separation
• Tempered Glass: Panoramic front and side panels with no pillar obstruction
• Warranty: 1 year
