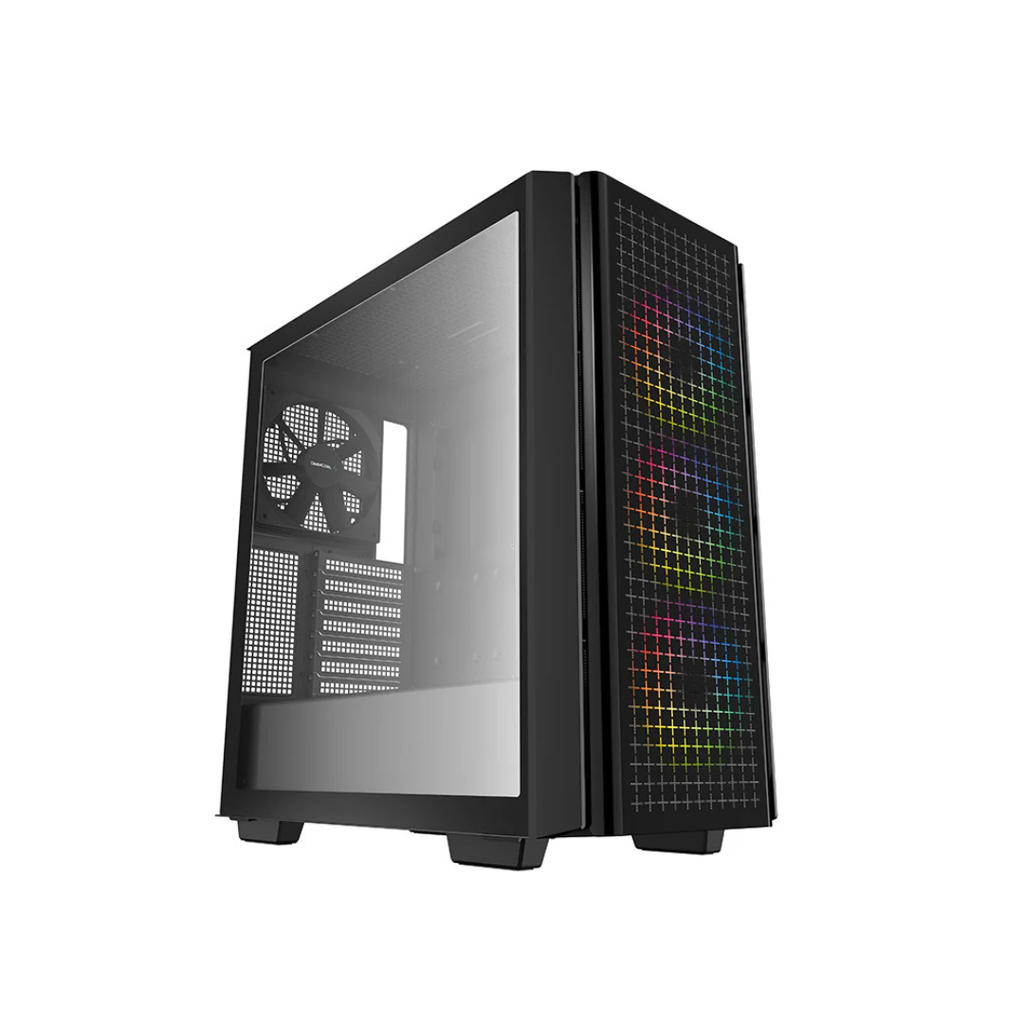

DeepCool CG540 – Mid-Tower ATX Case

Model: R-CG540-BKAGE4-E-2

🧰 Key Specifications

• Dimensions: 455 × 230 × 470 mm (L × W × H)
• Weight: 7.5 kg
• Materials: ABS, SPCC Steel, Tempered Glass
• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
• Expansion Slots: 7
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 2 × USB 3.0
  • 1 × Audio/Mic combo jack
  • Power and Reset buttons

🌬️ Cooling Support

• Pre-Installed Fans:
  • Front: 3 × 120mm ARGB fans
  • Rear: 1 × 140mm black fan
• Fan Support:
  • Front: 3 × 120mm or 2 × 140mm
  • Top: 2 × 120mm or 2 × 140mm
  • Rear: 1 × 120mm or 1 × 140mm
• Radiator Support:
  • Front: Up to 360mm
  • Top: Up to 280mm
  • Rear: Up to 140mm

📏 Clearance

• GPU Length: Up to 380mm
• CPU Cooler Height: Up to 175mm
• PSU Length: Up to 170mm

🔧 Other Features

• Tempered Glass: Front and side panels
• ARGB Lighting: 3 pre-installed ARGB fans with lighting control via reset button
• Dust Filters: Magnetic filters on top and bottom
• Cable Management: Space behind motherboard tray
• Tool-Free Design: Slide-and-latch side panels for easy access
