CASE - R-CG580-BKNDA0-G-1

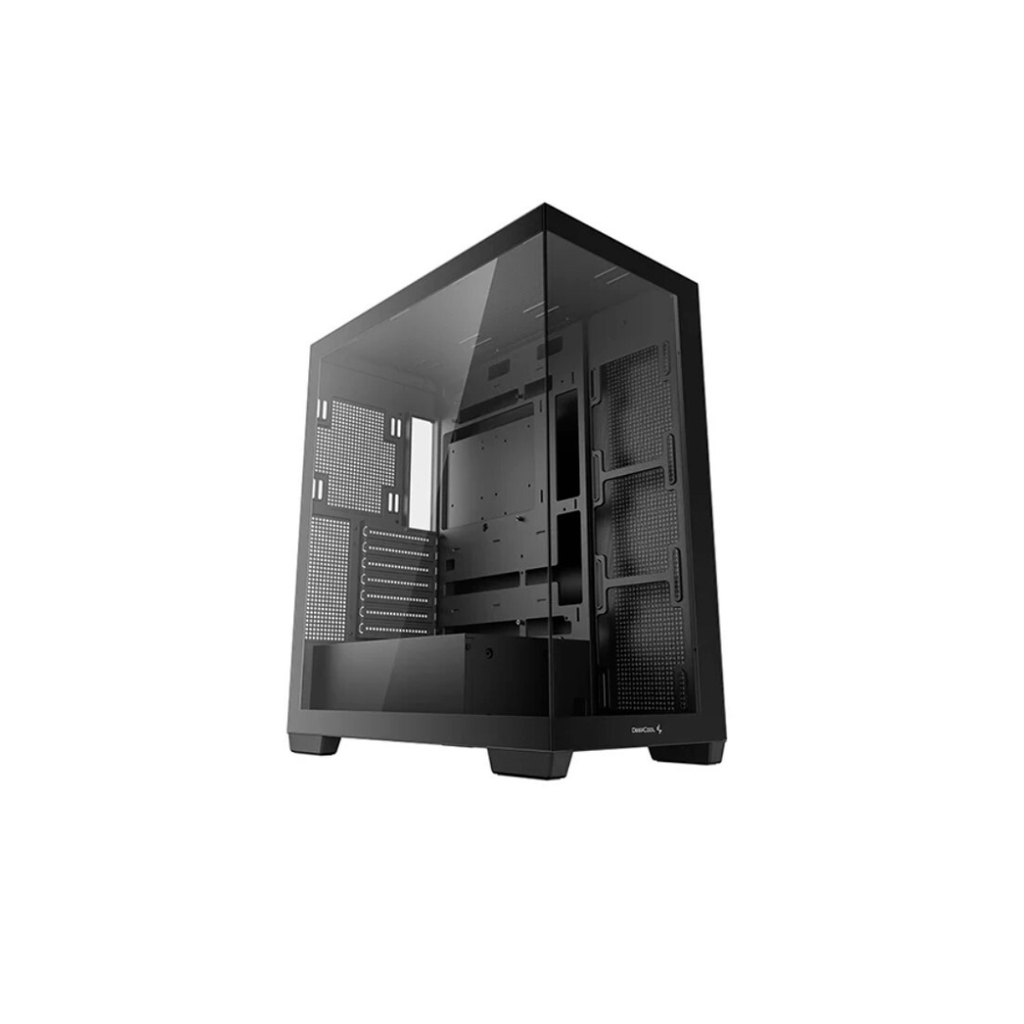

DeepCool CG580 – Mid-Tower ATX Case

Model: R-CG580-BKNDA0-G-1

🧰 Key Specifications

• Dimensions: 437 × 235 × 501 mm (L × W × H)
• Weight: 7.9 kg
• Materials: ABS, SGCC, Tempered Glass
• Motherboard Support: ITX, Micro-ATX, ATX (including rear connector variants)
• Expansion Slots: 7
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 2 × USB 3.0
  • 1 × Audio
  • Power and Reset buttons

🌬️ Cooling Support

• Top:
  • 3 × 120mm or 2 × 140mm fans
  • Up to 360mm radiator
• Side:
  • 3 × 120mm fans
  • Up to 360mm radiator
• Rear:
  • 1 × 120mm or 1 × 140mm fan
  • Up to 140mm radiator
• Bottom:
  • 1 × 120mm fan or 3.5" HDD (only one can be used)
• PSU Shroud:
  • 2 × 120mm fans

📏 Clearance

• GPU Length: Up to 410mm (262mm if side 360mm radiator is used)
• CPU Cooler Height: Up to 176mm
• PSU Length: Up to 210mm

🔧 Other Features

• Pre-Installed Fans: None
• Dust Filters: Magnetic top filter
• Cable Management Space: 33mm
• Warranty: 1 year
• Special Design: Panoramic tempered glass panels without front-side pillar for unobstructed view
