CASE - R-CG580-WHNDA0-G-1

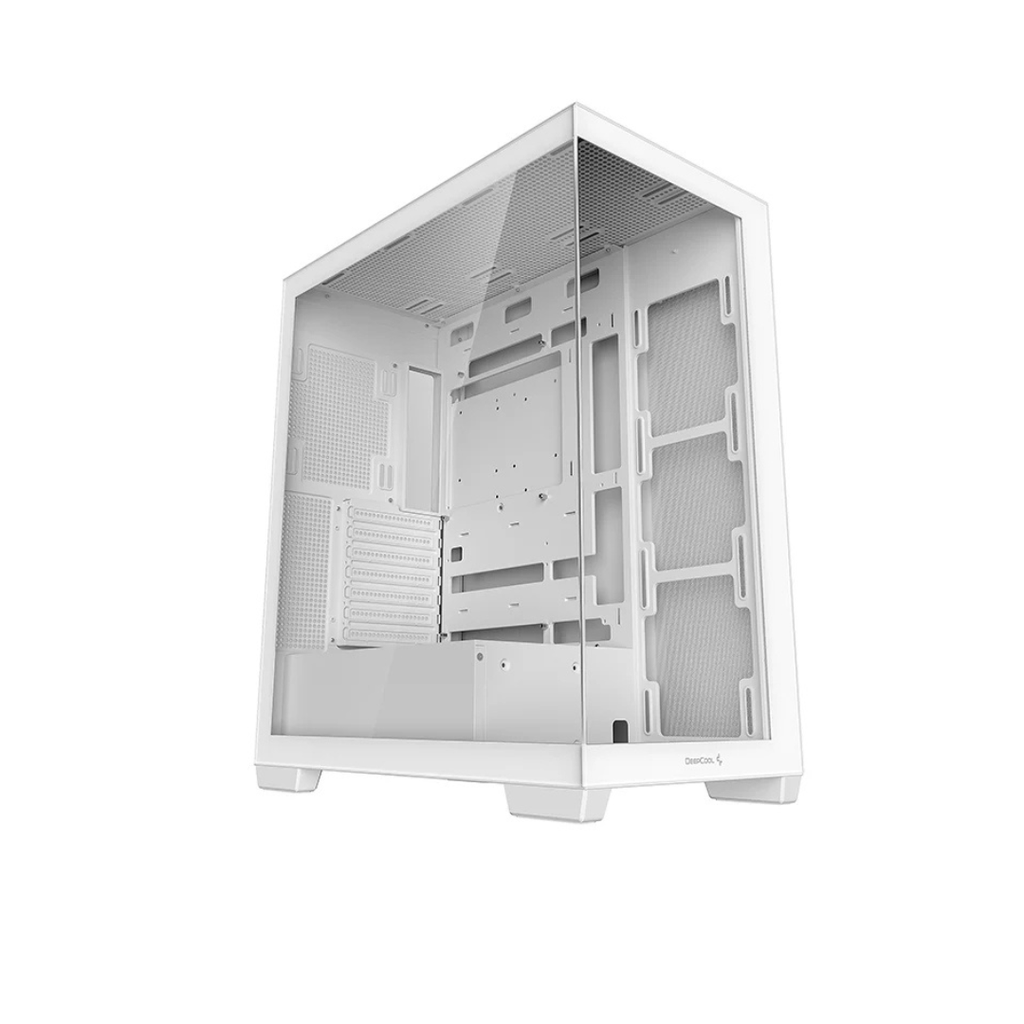

The DeepCool CG580 WH (Model: R-CG580-WHNDA0-G-1) is a mid-tower ATX case featuring a sleek white finish and panoramic tempered glass panels, designed to showcase your build while offering ample space and cooling options.

🧰 Key Specifications

• Dimensions: 437 × 235 × 501 mm (L × W × H)
• Weight: 7.9 kg
• Materials: ABS, SGCC, Tempered Glass
• Motherboard Support: ITX, Micro-ATX, ATX (including rear connector variants)
• Expansion Slots: 7
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 2 × USB 3.0
  • 1 × Audio
  • Power and Reset buttons
• Cooling Support:
  • Top: 3 × 120mm or 2 × 140mm fans; supports up to 360mm radiators
  • Side: 3 × 120mm fans; supports up to 360mm radiators
  • Rear: 1 × 120mm or 1 × 140mm fan; supports up to 140mm radiators
  • Bottom: 1 × 120mm fan or 3.5" HDD (choose one)
  • PSU Shroud: 2 × 120mm fans
• Clearance:
  • GPU Length: Up to 410mm (limited to 262mm if a 360mm side radiator is installed)
  • CPU Cooler Height: Up to 176mm
  • PSU Length: Up to 210mm
• Pre-Installed Fans: None
• Dust Filters: Magnetic top filter
• Warranty: 1 year

🌟 Notable Features

• Panoramic View: The absence of an A-pillar between the front and side tempered glass panels provides an unobstructed view of your build.
• Single-Chamber Design: Optimizes space and airflow, with 33mm of cable management space for a clean setup.
• Versatile Cooling Options: Supports multiple fan and radiator configurations to accommodate various cooling needs.
• Top I/O Panel: Convenient access to USB ports and audio jack.
