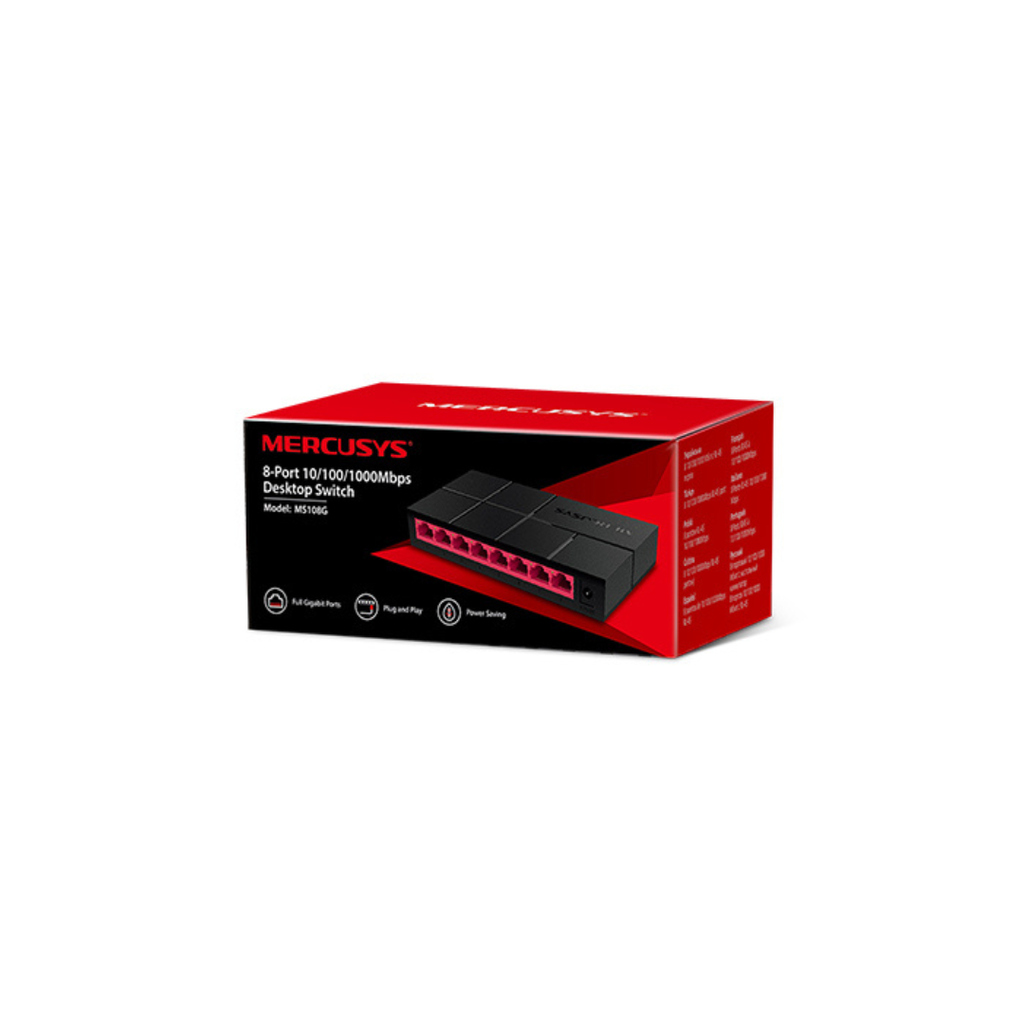

SWITCH MERCUSYS MS108G 8-PORT 10/100/1000 MPS

Mercusys MS108G – Specifications

Type

• Unmanaged Gigabit Ethernet Switch
• Desktop form factor

Ports

• 8 × 10/100/1000 Mbps RJ45 ports
• Auto-Negotiation and Auto-MDI/MDIX support

Performance

• Switching capacity: 16 Gbps
• Data rates:
  • 10/100/1000 Mbps (half duplex)
  • 20/200/2000 Mbps (full duplex)
• Buffer memory: 64 KB
• Jumbo frame support: 9 KB
• Transfer method: Store and Forward

Design

• Fanless operation for silent performance
• Dimensions: 127 × 60.3 × 22 mm
• Plastic casing

Power Supply

• External adapter: 9V / 0.6A

LED Indicators

• Power
• Ethernet activity for each port

Standards & Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• CSMA/CD

Certifications

• CE, RoHS

Operating Environment

• Temperature: 0°C to 40°C
• Humidity: 10% to 90% (non-condensing)

Package Contents

• MS108G 8-Port Desktop Switch
• Power adapter
• Quick Installation Guide
