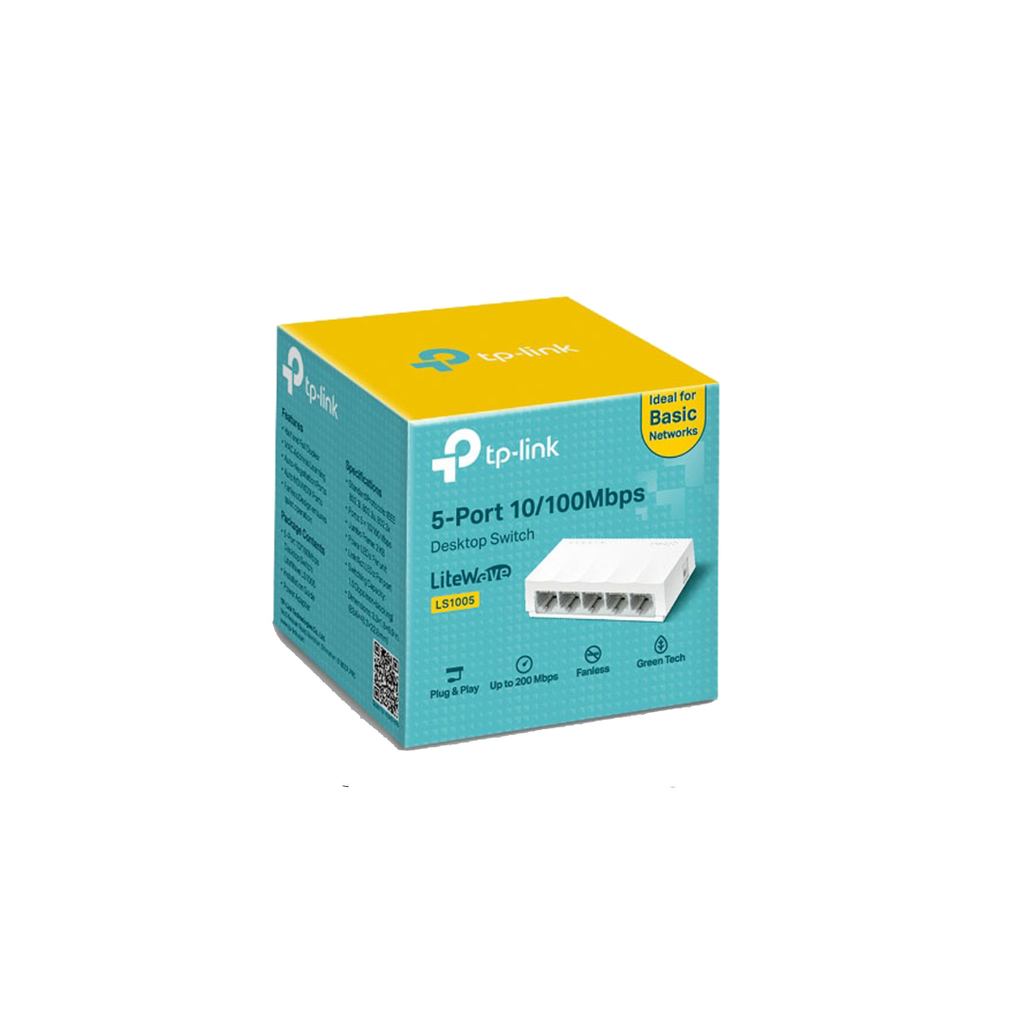

SWITCH TP-LINK 5 PORTA LS1005

TP-Link LS1005 – Specifications

Type

• Unmanaged Fast Ethernet Switch
• Desktop form factor

Ports

• 5 × 10/100 Mbps RJ45 ports
• Auto-Negotiation and Auto-MDI/MDIX support

Performance

• Switching capacity: 1 Gbps
• Data rates:
  • 10/100 Mbps (half duplex)
  • 20/200 Mbps (full duplex)
• Transfer method: Store and Forward

Design

• Fanless operation for silent performance
• Plastic casing
• Dimensions: 83.6 × 45.7 × 22.8 mm

Power Supply

• External adapter: 5V / 0.6A
• Maximum power consumption: 1.65 W

LED Indicators

• Power
• Ethernet activity for each port

Advanced Features

• IEEE 802.3x Flow Control
• Green Ethernet technology for energy efficiency
• Plug and play, no configuration required

Certifications

• CE, FCC, RoHS

Operating Environment

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)

Package Contents

• LS1005 5-Port Desktop Switch
• Power adapter
• Quick Installation Guide
