CASE - R-CH370-WHNAM1-G-1

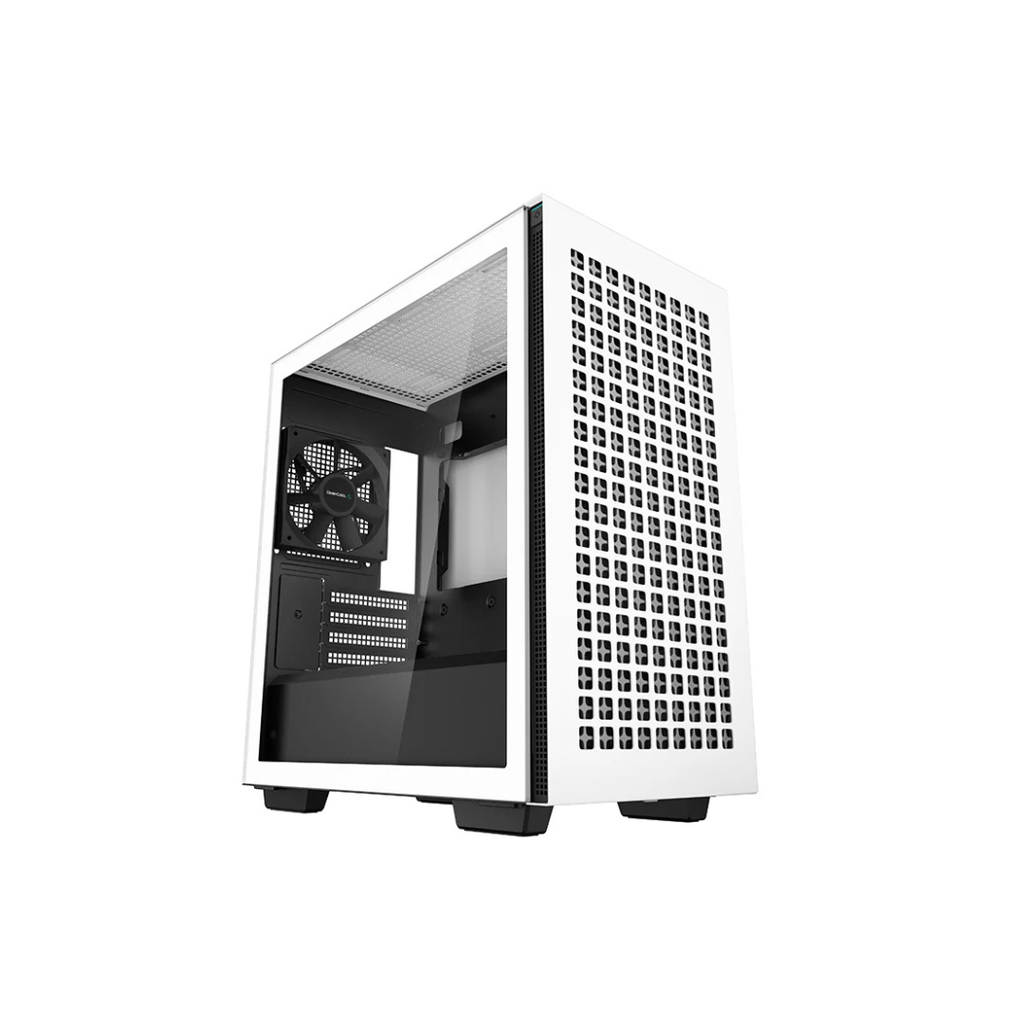

DeepCool CH370 WH – Micro-ATX Case

Model: R-CH370-WHNAM1-G-1

🧰 Key Specifications

• Dimensions: 413 × 215 × 431 mm (L × W × H)
• Weight: 5.3 kg
• Materials: ABS, SPCC Steel, Tempered Glass
• Motherboard Support: Mini-ITX, Micro-ATX
• Expansion Slots: 4
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 2 × USB 3.0
  • 1 × Audio/Mic combo jack
  • Power and Reset buttons

🌬️ Cooling Support

• Pre-Installed Fans: 1 × 120mm rear fan
• Fan Support:
  • Front: 3 × 120mm or 2 × 140mm fans
  • Top: 2 × 120mm or 2 × 140mm fans
  • Rear: 1 × 120mm fan
  • PSU Shroud: 2 × 120mm fans
• Radiator Support:
  • Front: 120/140/240/280/360mm
  • Top: 120/140/240mm
  • Rear: 120mm

📏 Clearance

• GPU Length: Up to 320mm (with front-mounted radiator)
• CPU Cooler Height: Up to 165mm
• PSU Length: Up to 160mm

🔧 Notable Features

• Tempered glass side panel with magnetic mounting and optional safety lock
• Retractable headset holder on front panel
• Pre-installed GPU support bracket to prevent sag
• Removable dust filters on top, bottom, and PSU intake
• Tool-free SSD mounting for easy installation
