CASE - R-CH560-BKAPE4-G-1

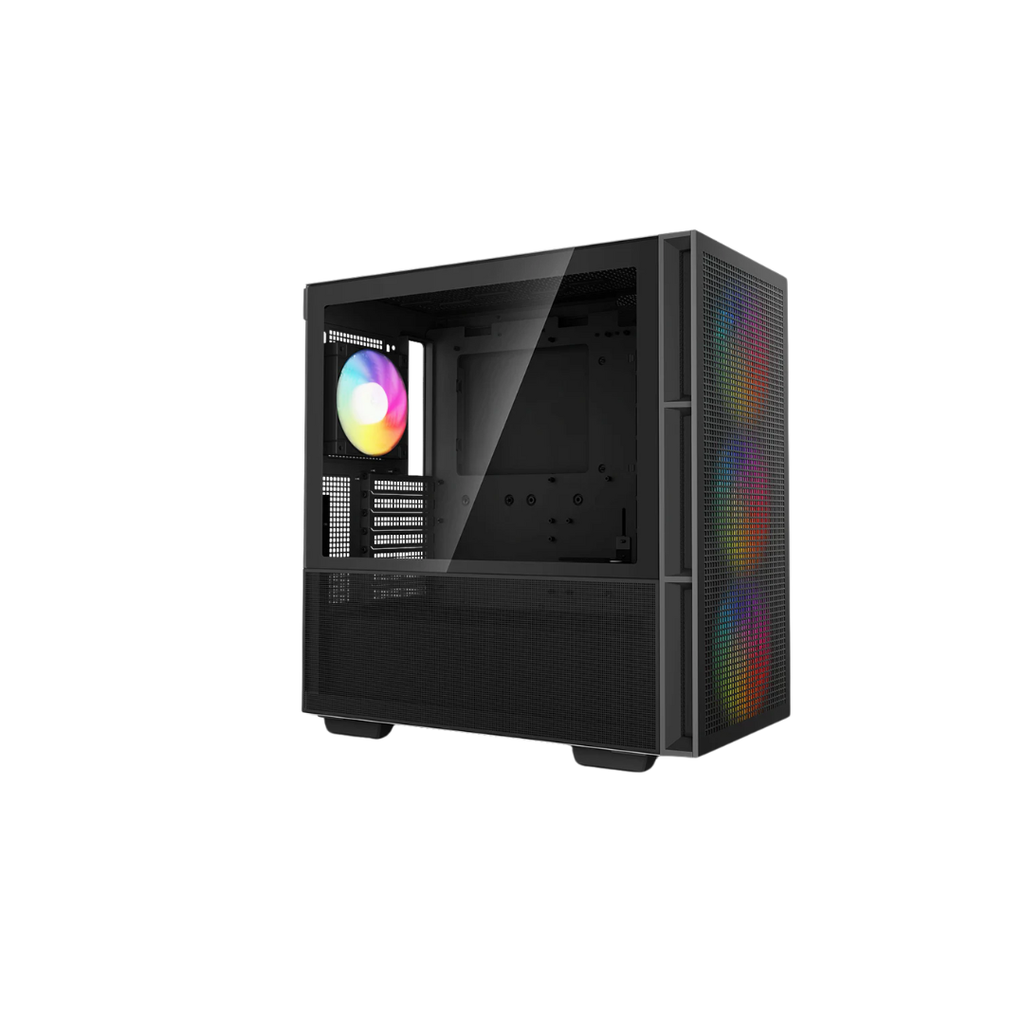

DeepCool CH560 – Mid-Tower ATX Case

Model: R-CH560-BKAPE4-G-1

Key Specifications

• Dimensions: 458 × 230 × 471 mm (L × W × H)
• Weight: 7.5 kg
• Materials: ABS, SPCC Steel, Tempered Glass
• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
• Expansion Slots: 7
• Drive Bays:
  • 2 × 3.5" HDD
  • 2 + 1 × 2.5" SSD
• Front I/O Ports:
  • 1 × USB 3.0
  • 1 × USB Type-C
  • 1 × Audio/Mic combo jack
  • Power and Reset buttons

Cooling Support

• Pre-Installed Fans:
  • Front: 3 × 140mm ARGB fans
  • Rear: 1 × 120mm ARGB fan
• Fan Support:
  • Front: 3 × 120mm or 3 × 140mm
  • Top: 3 × 120mm or 2 × 140mm
  • Rear: 1 × 120mm or 1 × 140mm
  • PSU Shroud: 2 × 120mm
• Radiator Support:
  • Front: 120/140/240/280/360mm
  • Top: 120/140/240/280/360mm
  • Rear: 120/140mm

Clearance

• GPU Length: Up to 380mm
• CPU Cooler Height: Up to 175mm
• PSU Length: Up to 170mm

Other Features

• Hybrid tempered glass and mesh side panel
• PWM-enabled ARGB fans with addressable RGB lighting
• Cable management with 26mm clearance behind motherboard tray
• Magnetic dust filters on top, bottom, and PSU intake
• Integrated GPU support arm to prevent sag
• Magnetic hybrid panel with optional security screw
